ArchiX User Guide

Input: Elevation Plan (Structure-Preserving Generation)

With Elevation plan input, you can generate while keeping the structure intact. The style is fixed to Realistic.

When you set the Input Image Type to Elevation plan, ArchiX generates with accurate interpretation of the shapes. It's ideal when you want to create a rendering from an elevation or interior elevation.

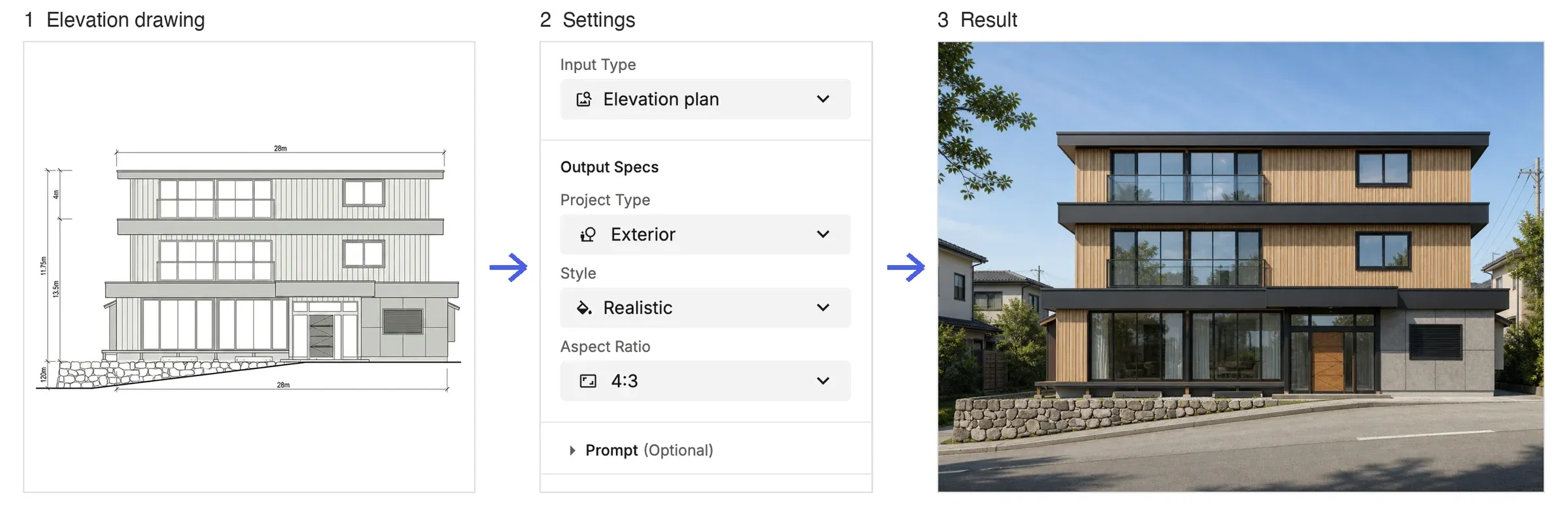

Step by step: an elevation drawing, the Elevation plan settings, and the realistic exterior rendering

Because this option is designed to prioritize accurate shapes, the style is fixed to Realistic.

Features of Elevation Plan Input

  • Generation that keeps the shape: Accurately interprets shapes and structure, and generates a rendering faithful to the original image.
  • Style fixed to Realistic: You can't change the rendering style.

💡 Tip: Elevation plan input is the best choice when you want to keep the structure. If you want a different style, use Apply Style on the Edit tab after generating.
